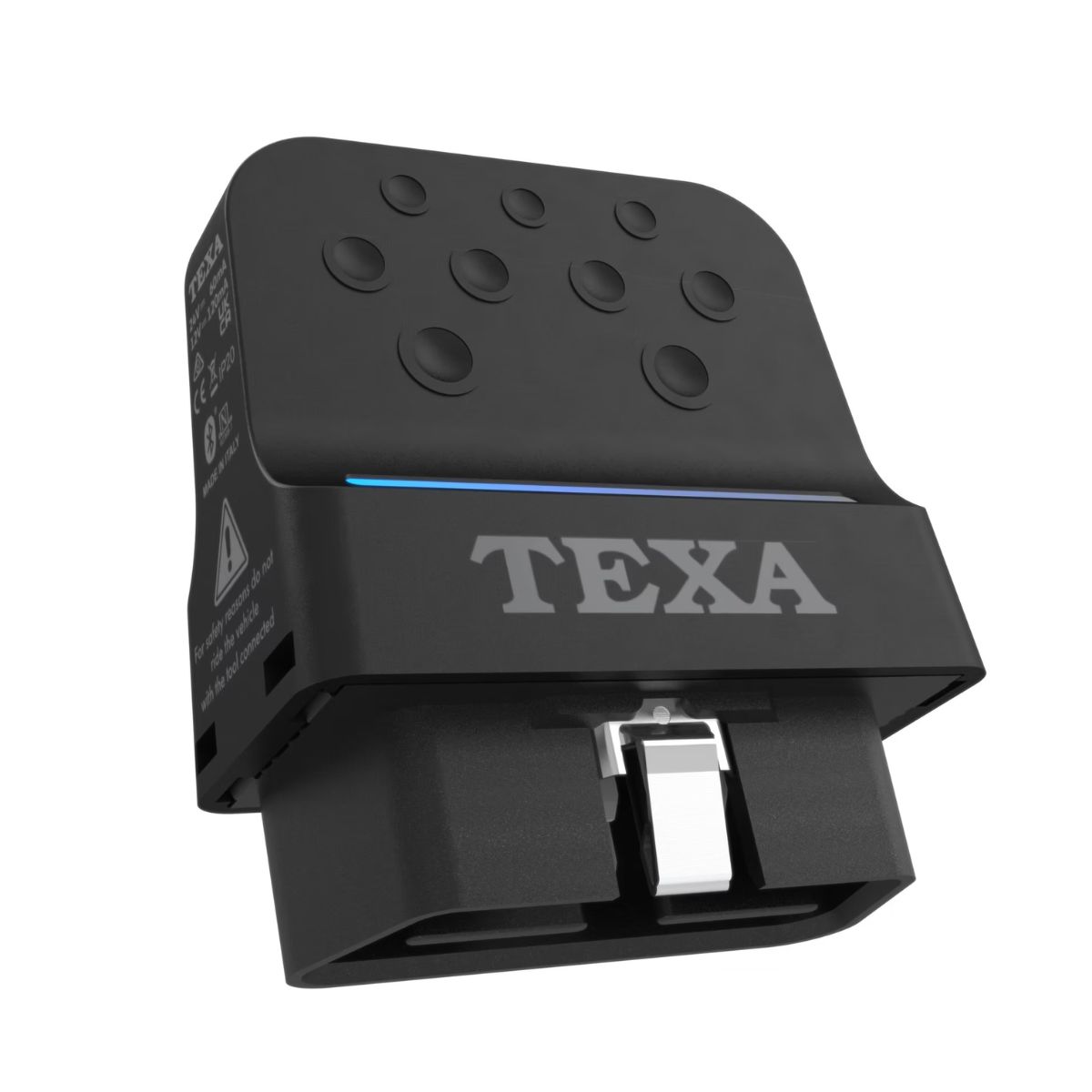

Navigator TXB ZERO is a specialized automotive scanner–grade diagnostic interface developed for outboard engines and personal watercraft (jet skis). It is designed to support professional technicians who need accurate, fast, and reliable diagnostics in marine environments.
Although dedicated to marine applications, TXB ZERO works with the same advanced logic used in a car scanner, engine scanner, and multi brand diagnostic scanner, making it a powerful engine diagnostic tool for marine repair and maintenance.
Versatile Design for Multiple Marine Engines
TXB ZERO is engineered to be compatible with a wide range of outboard motors and personal watercraft engines, offering a flexible and future-ready diagnostic solution. Its robust design supports daily service operations and advanced troubleshooting, similar to a professional automotive scan tool used in vehicle workshops.
An advanced built-in technology allows technicians to record diagnostic sessions even while the engine or watercraft is moving, making it especially useful for real-world performance analysis and fault detection.
Dedicated Automotive Diagnostic Software for Marine Use

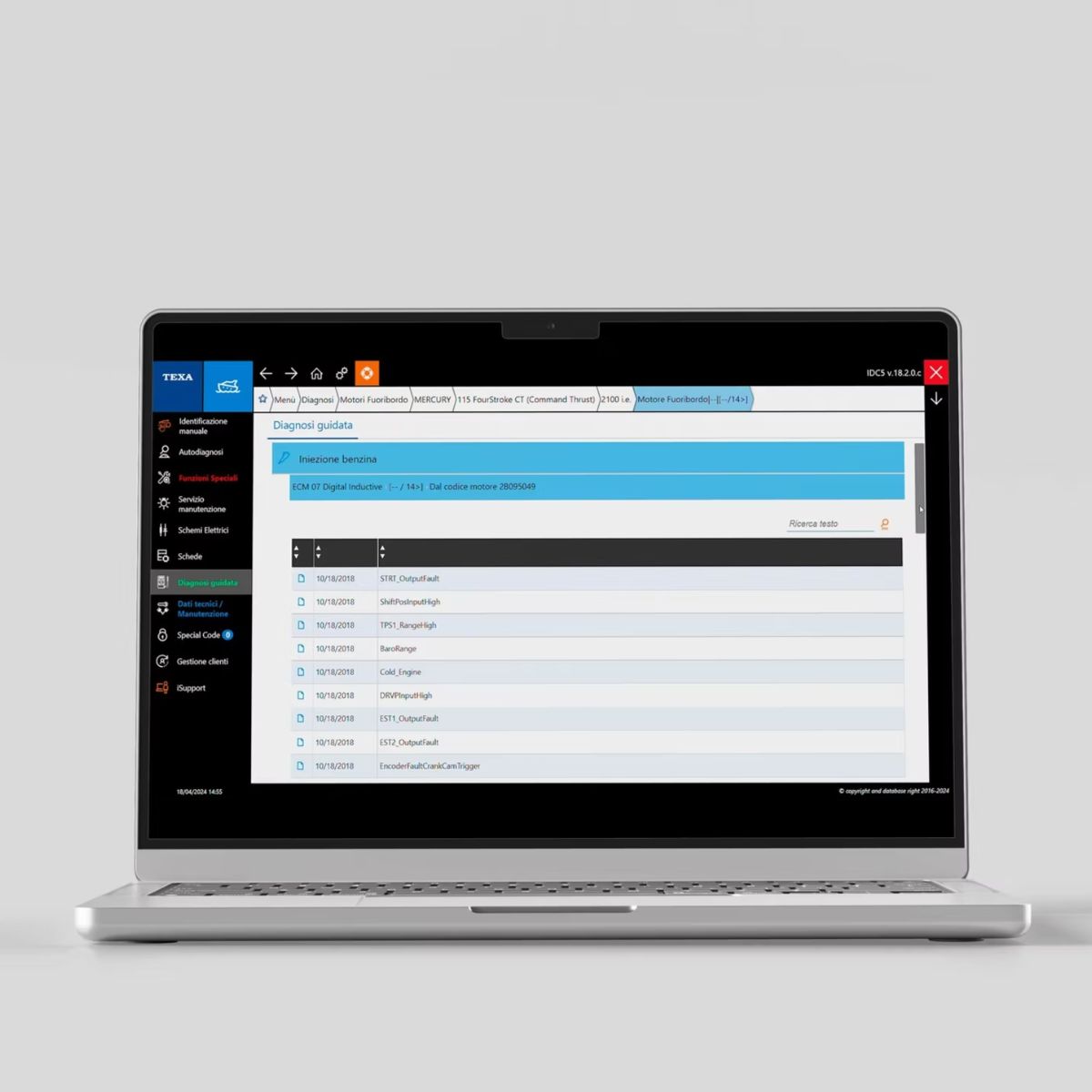

TXB ZERO comes in a practical carrying case that includes all required cables for diagnosing various marine engines. It works with IDC6 MARINE automotive diagnostic software, specifically developed for this interface.
The software provides:
- Detailed technical data
- Interactive electrical wiring diagrams
- Technical data sheets
- Nominal values linked to error codes
- Guided diagnostic information
This makes TXB ZERO a true multi-brand scanner for marine engines, offering the same depth and clarity expected from high-end automotive diagnostic software.
Professional Solution for Marine Technicians
By combining portability, advanced software, and broad engine compatibility, TXB ZERO delivers a reliable diagnostic experience comparable to a bike diagnostic tool or automotive scanner, but fully optimized for marine applications.
Technical Specifications
| MODEL | SUPPORTED AUTOMOTIVE BUS TYPES |
| NAVIGATOR TXB Zero | • 4 HS CAN transceivers connected to OBD pins |
| MANUFACTURER | 3-11, 1-9, 12-13, 6-14 that can be enabled |
| TEXA S.p.A. | individually |
| PROCESSOR | • 1 J1708 transceiver connected to pins 12-13 |
| ARM Cortex M4 (STM32F439ZIY6) | • 1 ISO9141-2, ISO14230 transceiver with 60mA |
| MEMORY | current protection connected to pins 3 or 7 |
| • SDRAM: 8 MB | VISIBLE WARNINGS |
| • Flash NAND: 4 GB | • Green/red bi-colour LED x1 |
| VEHICLE BATTERY | • Blue LED x1 |
| 12Vdc and 24Vdc system management | 12 V CONSUMPTION |
| EXTERNAL POWER SUPPLY | < 120 mA |
| 12 / 24 Vdc | 24 V CONSUMPTION |
| WIRELESS CONNECTION | < 60 mA |
| Bluetooth Classic (2.1) | OPERATING TEMPERATURE |
| OPERATIONAL BAND | 0 ÷ 50 °C |
| 2400 – 2483.5 MHz | STORAGE TEMPERATURE |
| MAXIMUM RADIO FREQUENCY POWER TRANSMITTED | – 20 ÷ 60 °C |
| 4 dBm | OPERATING MOISTUREESERCIZIO |
| DIAGNOSTIC CONNECTOR | 10% ÷ 80% without condensation |
| OBD ISO15031-03 for 24 V systems | WEIGHT |
| 15 gA |
