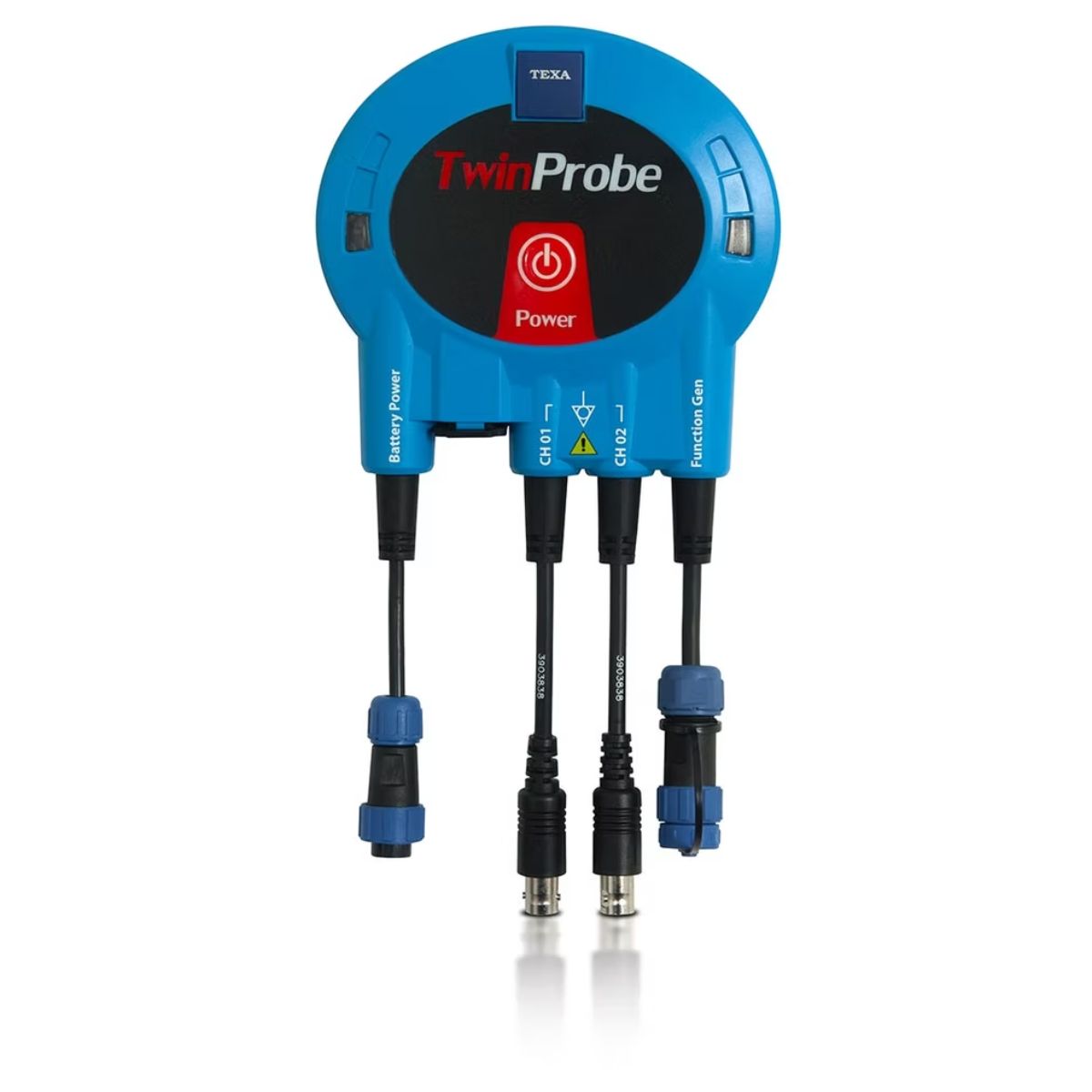

Developed by TEXA, TwinProbe offers excellent precision at a more affordable price compared to UNIProbe, while still delivering high performance for everyday service operations. It complements any multi brand scanner or multi brand diagnostic scanner by providing detailed signal measurement and analysis.

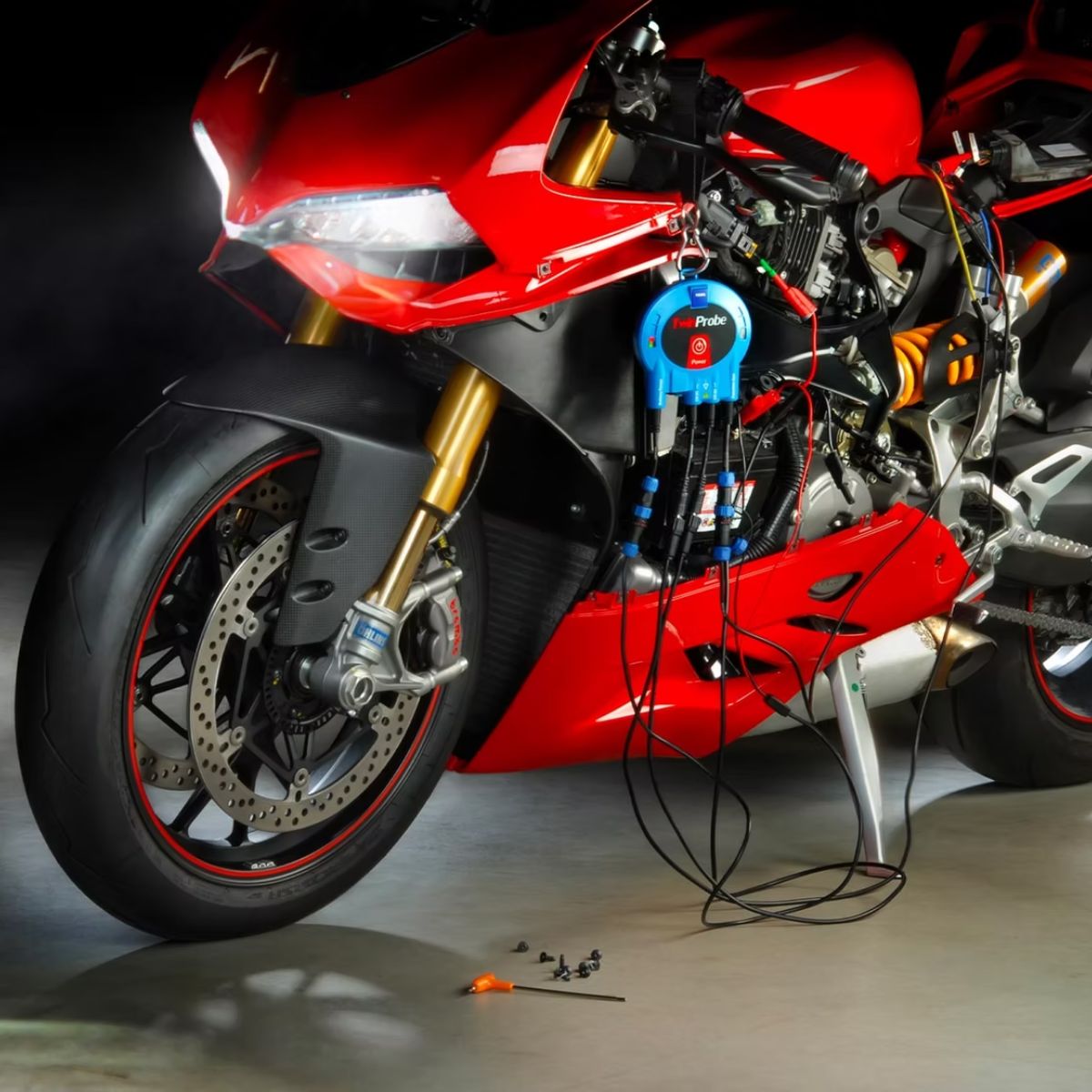

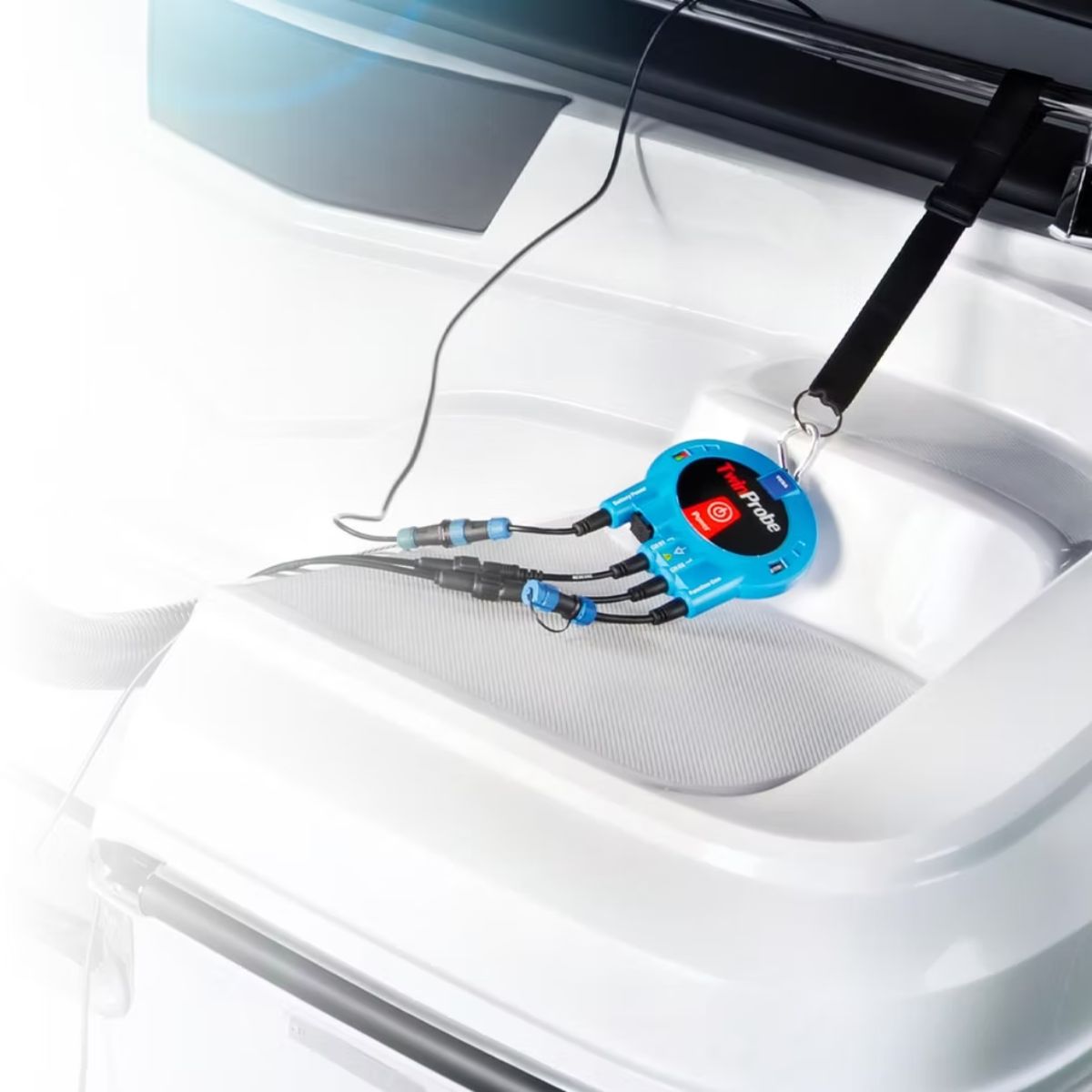

TwinProbe connects easily to TEXA display units or a Windows PC using USB or Bluetooth, allowing complete freedom of movement around the bike or vehicle. This flexibility makes it an efficient bike scan tool, bike diagnostic tool, and automotive scan tool for workshop environments.
The device is fully managed through IDC5 or Measurement System Software (MSS), ensuring smooth integration with professional automotive diagnostic software.

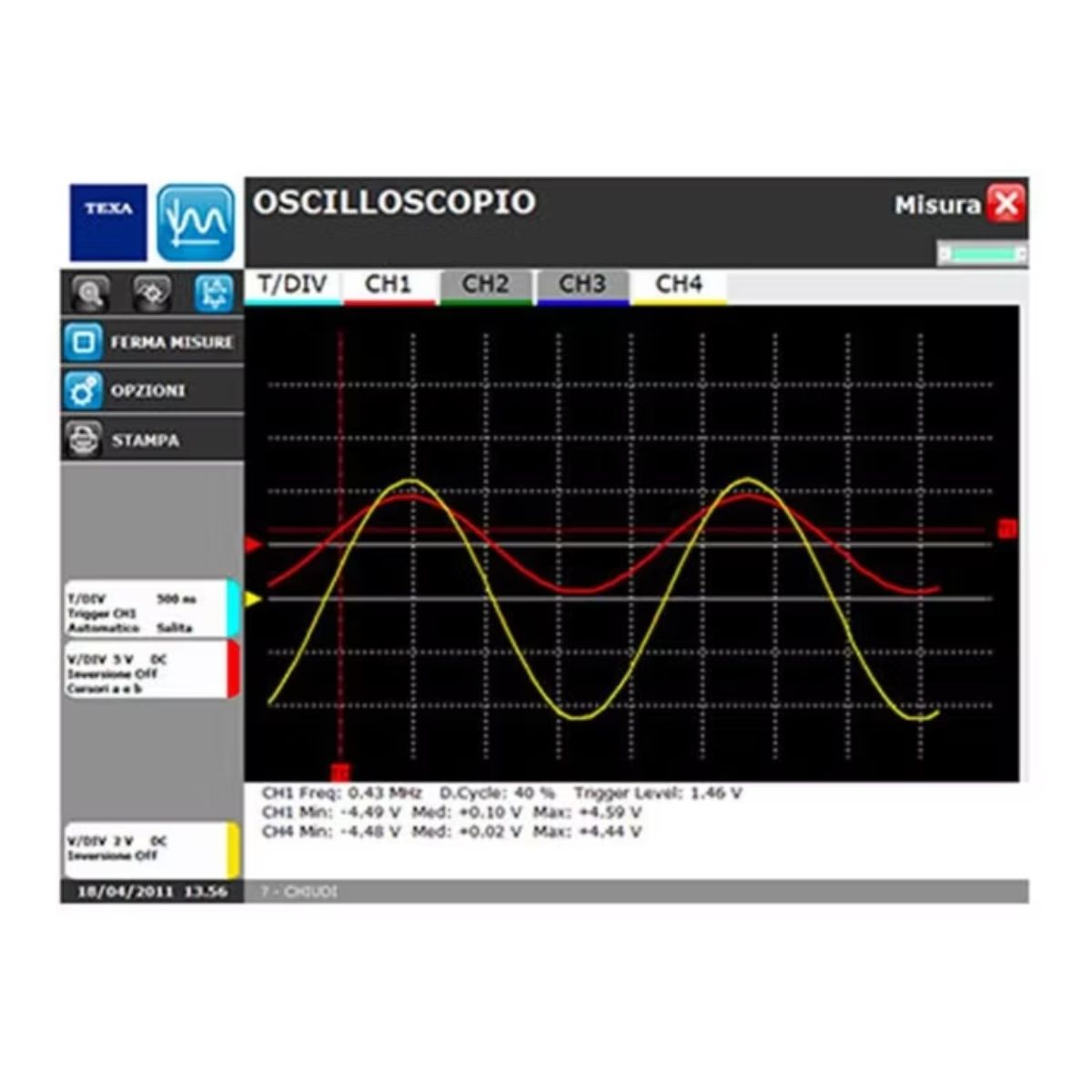

Oscilloscope with Intelligent Signal Analysis
TwinProbe functions as a two-channel oscilloscope, capable of handling analogue inputs up to ±200V. It includes the advanced SIV (Signal Information Viewing) feature, which helps technicians understand and interpret measured signals more easily.
The SIV function guides users step by step through the testing process. While displaying the signal, TwinProbe simultaneously measures, processes, and analyzes data in real time, making it a powerful engine diagnostic tool for bikes and vehicles.
The device can analyze signals from various sensors and actuators and automatically compare them with reference values stored in its internal database. Any abnormal signal is highlighted instantly, helping technicians detect faults faster and more accurately.
Built-in Signal Generator
TwinProbe includes a practical signal generator that can simulate sensor inputs and ECU output signals. This is especially useful for testing actuators such as solenoid valves and identifying system faults without replacing components unnecessarily.
Current Measurement Capability
TwinProbe can also measure current intensity when used with the optional BICOR clamp-on ammeter. This feature allows deeper electrical analysis, further strengthening its role as a professional engine scanner and automotive scan tool.
Measurement System Software (MSS)
Access to all TwinProbe features is made easy through Measurement System Software (MSS), developed by TEXA specifically for this device. When combined with the complete IDC5 platform, technicians gain a powerful and intuitive automotive diagnostic software solution.
The intelligent SIV function compares live data with stored reference values, instantly identifying irregular signals and reducing diagnostic time—making workshop diagnostics faster, easier, and more accurate.
Technical Specifications
| POWER SUPPLY | A/D CONVERSION |
| 8 V – 35 V DC max | 2 10-bit converters. |
| STAND-BY CONSUMPTION | 40 MS/s with one active channel. |
| 150 mA at 12 V | 20 MS/s for channel with 2 active channels |
| CONSUMPTION DURING BATTERY CHARGE IN OSCILLOSCOPE MODE AND 2 ACTIVE CHANNELS | COMMON MODE |
| 480 mA at 12 V | AC, DC |
| INTERNAL BATTERY DURATION IN OSCILLOSCOPE MODE AND 2 ACTIVE CHANNELS | MAX INPUT VOLTAGE |
| 1h and 45 mins approximately | ± 200 V |
| ENVIRONMENTAL | ADDITIONAL FUNCTIONS |
| Operational temperature: 0 ÷ +45°C | Trigger delay, frequency calculation, Vmedia, Vmax, Vmin, Period, Setting scale for amperometric clamps |
| Storage temperature: – 20 °C ÷ 60 °C | SIGNAL GENERATOR: |
| Operating relative humidity: 10% – 80% | PWM CURRENT DRIVE |
| DIMENSIONS WITHOUT CABLES (WITH CABLES) | Maximum continuous current: 5 A at 12 V |
| 125 x 130 x 27 mm (135 x 130 x 27 mm) | Maximum PWM frequency: 50 kHz |
| WEIGHT | Operating voltage: 5÷30 V |
| 460 g | Duty Cycle Resolution: 1% |
| OSCILLOSCOPE: | Frequency resolution: 0,1 Hz |
| CHANNEL NUMBERS | PWM 5 V |
| 2 analogue (CH01, CH02) | Maximum continuous OUTPUT |
| HOST CONNECTION | current: 20 mA |
| Via USB2, USB1 or Wireless Bluetooth | Maximum PWM frequency: 50 kHz |
| TRIGGER | OUTPUT voltage: 0-5 V ± 5% |
| CH01 o CH02 | Duty Cycle Resolution: 1% |
| VIEWING MODE | Frequency resolution: 0,1 Hz |
| Normal, Auto, Single shot |
