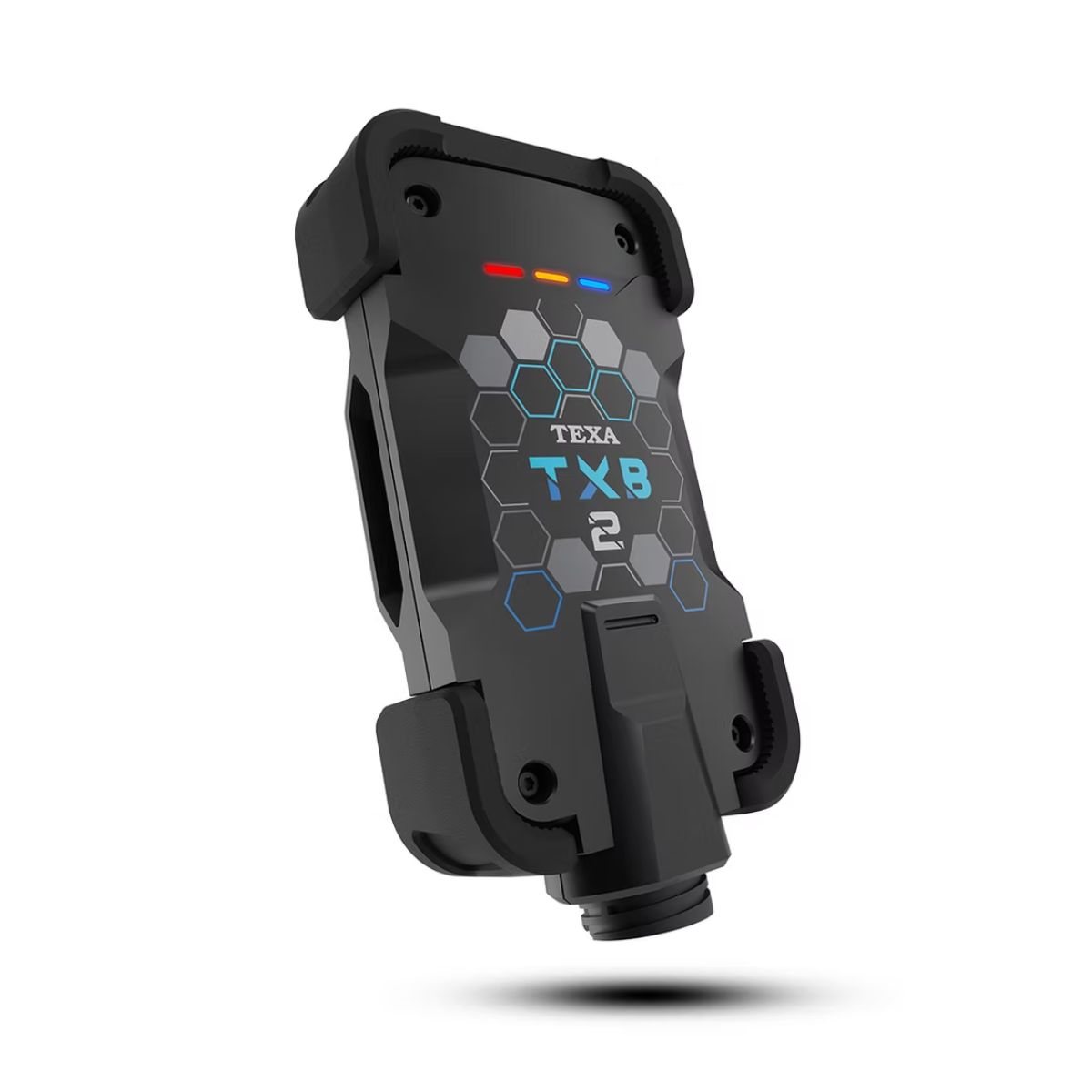

NAVIGATOR TXB 2 is a latest-generation diagnostic interface specially developed for bike and marine environments. Built with advanced technology, it delivers fast, accurate, and reliable diagnostics, similar to a professional bike scanner, engine scanner, and automotive scanner used in modern workshops.
The powerful internal processor ensures quick and precise communication with vehicle control units, even during Pass-Thru operations, making it a dependable engine diagnostic tool for technicians working on motorcycles and marine engines.
Faster Connectivity and Modern Hardware Design
TXB 2 is equipped with latest-generation Bluetooth technology and a modern USB Type-C port, ensuring faster connections and optimized data transfer. The addition of RGB LED indicators improves usability by clearly displaying the device’s operating status.
Its advanced hardware supports all current diagnostic protocols, and the built-in 16-pin CPC connector allows seamless use of all bike diagnostic cables. In addition to standard diagnostics, TXB 2 can also record diagnostic sessions while the vehicle is in motion, offering deeper insight into real-time performance.
IDC6 – Powerful Automotive Diagnostic Software for Bike & Marine
IDC6 is TEXA’s advanced automotive diagnostic software, designed to manage all essential workshop operations for bike and marine vehicles. When paired with TXB 2, it enables technicians to perform:
- Error code reading and clearing
- Viewing live parameters and ECU status
- Component activations and tests
- Adjustments and configurations
- Warning light reset
- ECU configuration
- Fuel trim and injection timing adjustments
- Key programming
With over 20 years of global experience, IDC6 provides exceptional vehicle coverage, making TXB 2 a reliable multi brand scanner and multi brand diagnostic scanner.
Deep and Intelligent Diagnostic Capabilities
IDC6 includes advanced diagnostic functions such as Global Scan, which automatically detects all control units installed on the vehicle and identifies related faults. The Freeze Frame feature displays critical parameters captured at the exact moment a fault occurs, helping technicians accurately identify and resolve issues faster.
These features make TXB 2 a professional-grade automotive scan tool and bike diagnostic tool, suitable for complex and modern vehicles.
Technical Specifications
| MODEL | ISO9141-2, ISO14230 |
| NAVIGATOR TXB 2 | • FD CAN 11898-2:2016 2 channels |
| MANUFACTURER | • CAN ISO 11898-3 LOW Speed |
| TEXA S.p.A. | • CAN SAE J2411 Single Wire |
| PROCESSOR | • SAE J1850 PWM |
| CORTEX M7 STM32H735AGI6 up to 550 MHz, 1MB | • SAE J1850 VPW |
| FLASH, 564KB RAM | • SAE J1708 |
| SRAM MEMORY | • RS232 |
| 16 MBits organized in 1024K x 16 bits | VISIBLE WARNINGS |
| SRAM | LED: RGB x3 |
| 256 MBits organized in 4096K x 4 banks x 16 bits | 12 V CONSUMPTION |
| eMMC MEMORY | 300 mA |
| 8 GByte on an 8-bit bus | 24 V CONSUMPTION |
| VEHICLE BATTERY | 100 mA |
| System management at 12 V and 24 V | OPERATING TEMPERATURE |
| EXTERNAL POWER SUPPLY | 0 ÷ 50 °C |
| 12 ÷ 24 V | STORAGE TEMPERATURE |
| USB COMMUNICATION | OPERATING MOISTURE |
| 2.0 high speed 5 V / 500 mA | 10 ÷ 80 % without condensation |
| WIRELESS CONNECTION | DIRECTIVES |
| Bluetooth 5.0 class1 | RED 2014/53/EU |
| OPERATIONAL BAND | RoHS 2011/65/EU and Delegated Directive 2015/863/EU |
| 2402 ÷ 2480 MHz | SAFETY |
| MAXIMUN RADIO FREQUENCY POWER TRANSMITTED | EN 62368-1 |
| 10 dBm | EN 62311 |
| ELECTRONIC SWITCH | ELECTROMAGNETIC COMPATIBILITY |
| 2-way, 13 independent positions | EN 301 489-1 |
| DIAGNOSTIC CONNECTOR | EN 301 489-17 |
| 16-pin CPC | RADIO SYSTEMS |
| SUPPORTED PROTOCOLS | EN 300 328 |
| • Blink codes | WEIGHT |
| • K, L (with current protection 100 mA), | 215 g |
